Offset Discs
Lighter and more compact than tandem discs. This allows for an ease in travel and storage, while still performing to the high standards Kello-Bilt is known for.

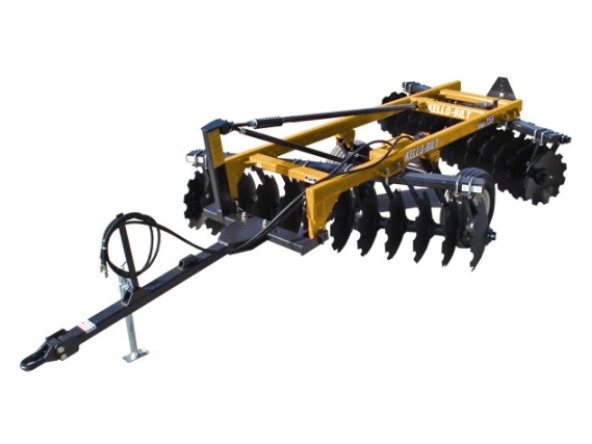

Model 155
This model features a heavy frame and quality components, perfect for small plots, row crops, berries, orchards and weed control.

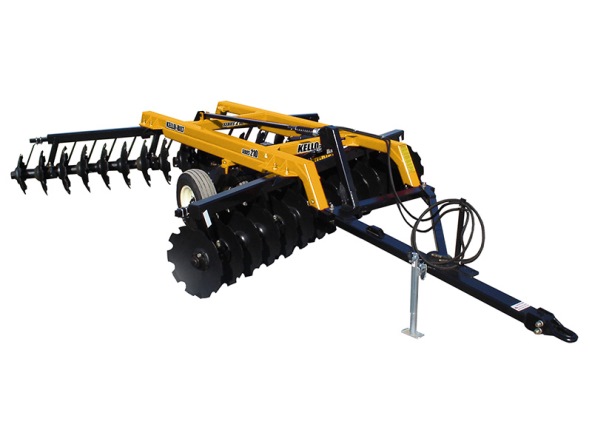

Model 225
A rugged, no gimmick design for long life and easy operation, perfect for smaller horse power tractors. Work down heavy straw and cornstalks, hayfields and pastures.

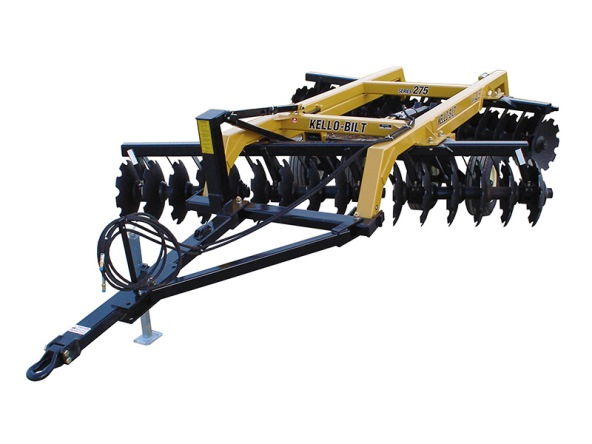

Model 275
The Model 275 is perfect for plowing down heavy straw, corn, grass or vegetable residue and removing old hay or pasture fields.

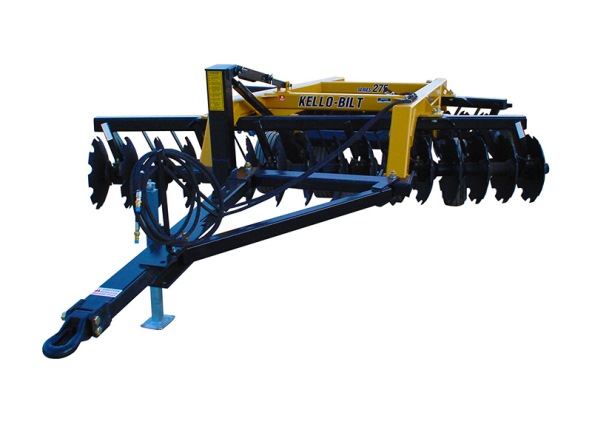

Model 275F
A wide single offset disc featuring hydraulically folding gang bars for ease of transport. When unfolded the wings are held rigidly in place with over-center locking assemblies.

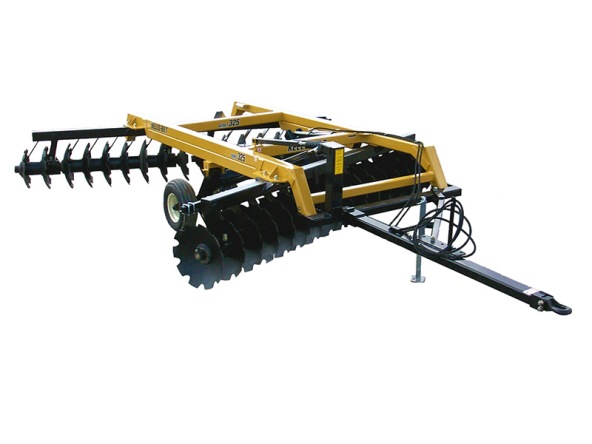

Model 325
This model is perfect for plowing down of heavy residues and primary tillage operations and light industrial applications.
These models have been specifically designed to meet the extreme conditions encountered in the construction industry. For over 30 years these rugged discs have been employed to clear land, build roads and dams, reclaim mine sties, mix and dry soil, and prepare land for reforestation throughout North America.

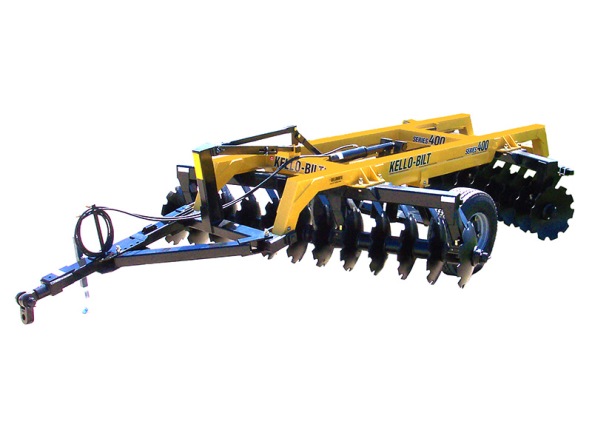

Model 400

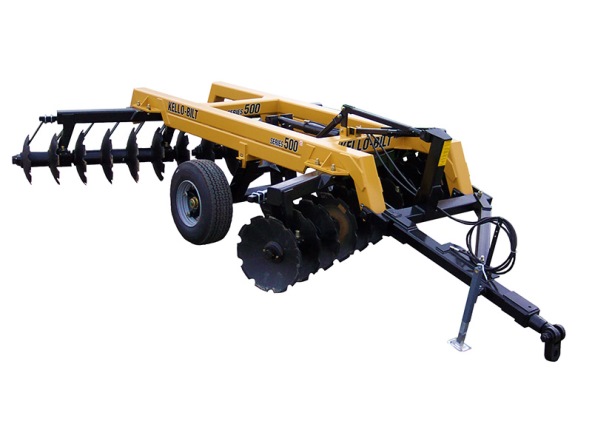

Model 500
Model 600

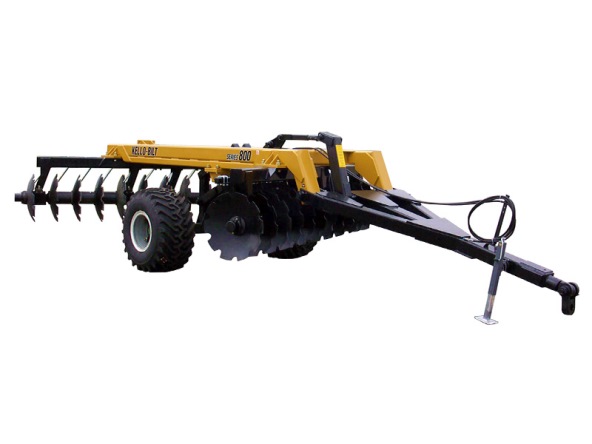

Model 800
Offset Disc Comparison Chart
155 | 225 | 275 | 275F | 325 | 400 | 500 | 600 | 800 | |
---|---|---|---|---|---|---|---|---|---|
GANG AXLE | 1-5/8" | 2-1/8" | 2-1/8" | 2-1/8" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
BLADE SIZES | 24" | 26" - 28" | 26" - 28" | 26" - 28" | 28" - 32" | 30" | 32" | 36" | 30" - 42" |
CUT WIDTH | 6'9" - 12' | 8' - 24' | 8' - 24' | 8' - 24' | 8' - 16' | 10' - 14' | 10' - 13'9" | 10' - 14'6" | 13' - 20' |
SPACING | 9" | 10-1/2" | 10-1/2" | 10-1/2" | 12" | 13" | 14" | 17" | 14" - 17" |
For detailed information please visit the Kello-Bilt website
